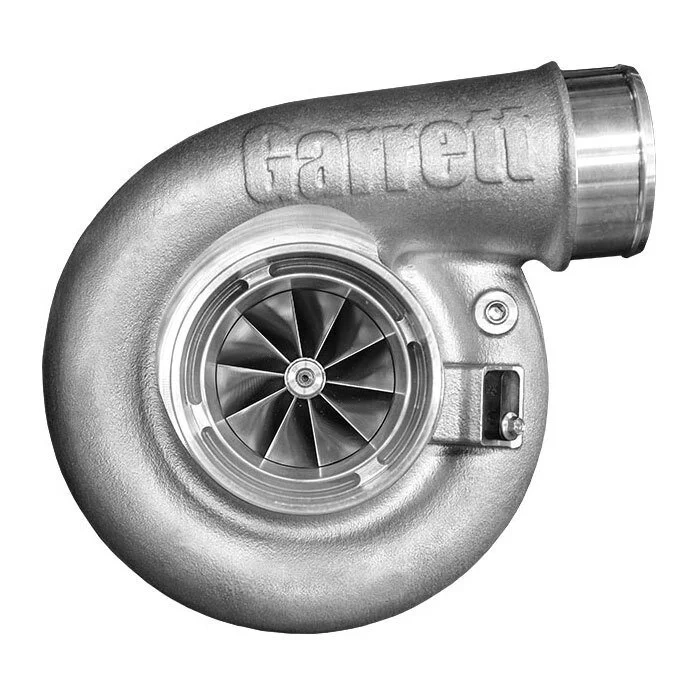

Garrett G42-1200 Compact Turbocharger - V-Band Inlet/Outlet

$5,079.00

Features of the Garrett G42 Compact Series:

  • Garrett® G Series Compressor Aerodynamics for maximum HP (10 Blade)

  • 109Lbs/Min Compressor Flow

  • 0.90a/r Compressor Housing

  • Stainless Steel Non Wastegated Turbine Housing rated up to 950°C

  • -6AN Water Fittings Included

  • CFD (Computational Fluid Dynamics) engineered compressor wheel

  • Optimized blade contour with 10 blade count

  • Forged & fully-machined compressor wheel

  • More power and faster boost response

  • Smaller Wheel = lower inertia

  • Aluminium backplate for reduced weight

  • Twin Piston Rings Compressor & turbine End

  • 10mm Ceramic Dual Ball Bearing Cartridge

  • The turbine wheel features all new aerodynamics to improve flow and boost response

  • Turbine Wheel features Inconel super alloy construction for temperatures up to 950C

  • Turbine housings are made from stainless steel to provide ultimate durability and temperature capability up 950°C

Select Rear Housing:
Quantity:
Add To Cart

Features of the Garrett G42 Compact Series:

  • Garrett® G Series Compressor Aerodynamics for maximum HP (10 Blade)

  • 109Lbs/Min Compressor Flow

  • 0.90a/r Compressor Housing

  • Stainless Steel Non Wastegated Turbine Housing rated up to 950°C

  • -6AN Water Fittings Included

  • CFD (Computational Fluid Dynamics) engineered compressor wheel

  • Optimized blade contour with 10 blade count

  • Forged & fully-machined compressor wheel

  • More power and faster boost response

  • Smaller Wheel = lower inertia

  • Aluminium backplate for reduced weight

  • Twin Piston Rings Compressor & turbine End

  • 10mm Ceramic Dual Ball Bearing Cartridge

  • The turbine wheel features all new aerodynamics to improve flow and boost response

  • Turbine Wheel features Inconel super alloy construction for temperatures up to 950C

  • Turbine housings are made from stainless steel to provide ultimate durability and temperature capability up 950°C

Features of the Garrett G42 Compact Series:

  • Garrett® G Series Compressor Aerodynamics for maximum HP (10 Blade)

  • 109Lbs/Min Compressor Flow

  • 0.90a/r Compressor Housing

  • Stainless Steel Non Wastegated Turbine Housing rated up to 950°C

  • -6AN Water Fittings Included

  • CFD (Computational Fluid Dynamics) engineered compressor wheel

  • Optimized blade contour with 10 blade count

  • Forged & fully-machined compressor wheel

  • More power and faster boost response

  • Smaller Wheel = lower inertia

  • Aluminium backplate for reduced weight

  • Twin Piston Rings Compressor & turbine End

  • 10mm Ceramic Dual Ball Bearing Cartridge

  • The turbine wheel features all new aerodynamics to improve flow and boost response

  • Turbine Wheel features Inconel super alloy construction for temperatures up to 950C

  • Turbine housings are made from stainless steel to provide ultimate durability and temperature capability up 950°C

SPECIFICATIONS

  • Bearing Type: Ball Bearing

  • Cooling System: Oil & Water Cooled

  • Turbine Housing: Externally Wastegated, available in 1.01a/r, 1.15a/r or 1.28a/r

  • Base Flange: V-Band Single Entry

  • Horsepower: 475-1200hp

  • Displacement: 2.0L - 7.0L

WHAT'S INCLUDED

  • (1) Turbocharger Assembly

  • -6AN Water Fittings

COMPATIBILITY

  • Universal Fitment
